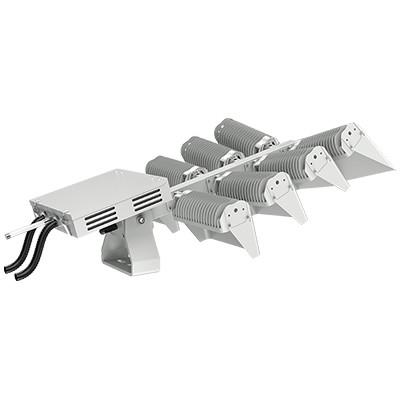

Glare Free LED Flood Lights Sports Lighting 0°Tilt Installed Rotatable Modular Design
SPECIFICATIONS
SOGA patent design under the inspiration of Eagle, Like the eagle's eyes, it accurately confirms the target, free and flexible, and precisely illuminated.and also with other competitive features as below:
Patent SOGA Streamlined Design
High-quality Die-casting aluminium housing
Vertically and Horizontally Adjustable Modular Design
Smaller Size and Lighter Weight
Anti-Glare & Obtrusive Light Control
Easy Aiming Check One-size Screws for all adjustment
Tool-free driver box
Quick Connected Electrical Box
Wireless Smart Control
Wireless or DMX Entertainment System
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| LED Brand | Lumileds 5050 |
| Rotatable Modular Design | Vertically 80°+horizontally180° |
| CRI | 70 80 90 |
| Wattage/Module | Symmetrical:180W Asymmetrical:150W |
| Operating Temp | -40℃ To 55℃ |
| Dimming Solutions | 0-10V Dimming, DALI, DMX, clo, Zigbee |
| Power Factor | ＞0.95 |
| CCT | 3000K 4000K 5000K 5700K 6500K |
| MODEL | SG-EG-720W | SG-EG-1080W | SG-EG-1440W | SG-EG-1800W |
| WATTAGE | 720W | 1080W | 1440W | 1800W |
| MODEL QTY | 4 | 6 | 8 | 10 |
| LUMEN EFFICIENCY | 170LM/W | 170LM/W | 170LM/W | 170LM/W |
| LUMEN OUTPUT | 122400LM | 183600LM | 244800LM | 306000LM |

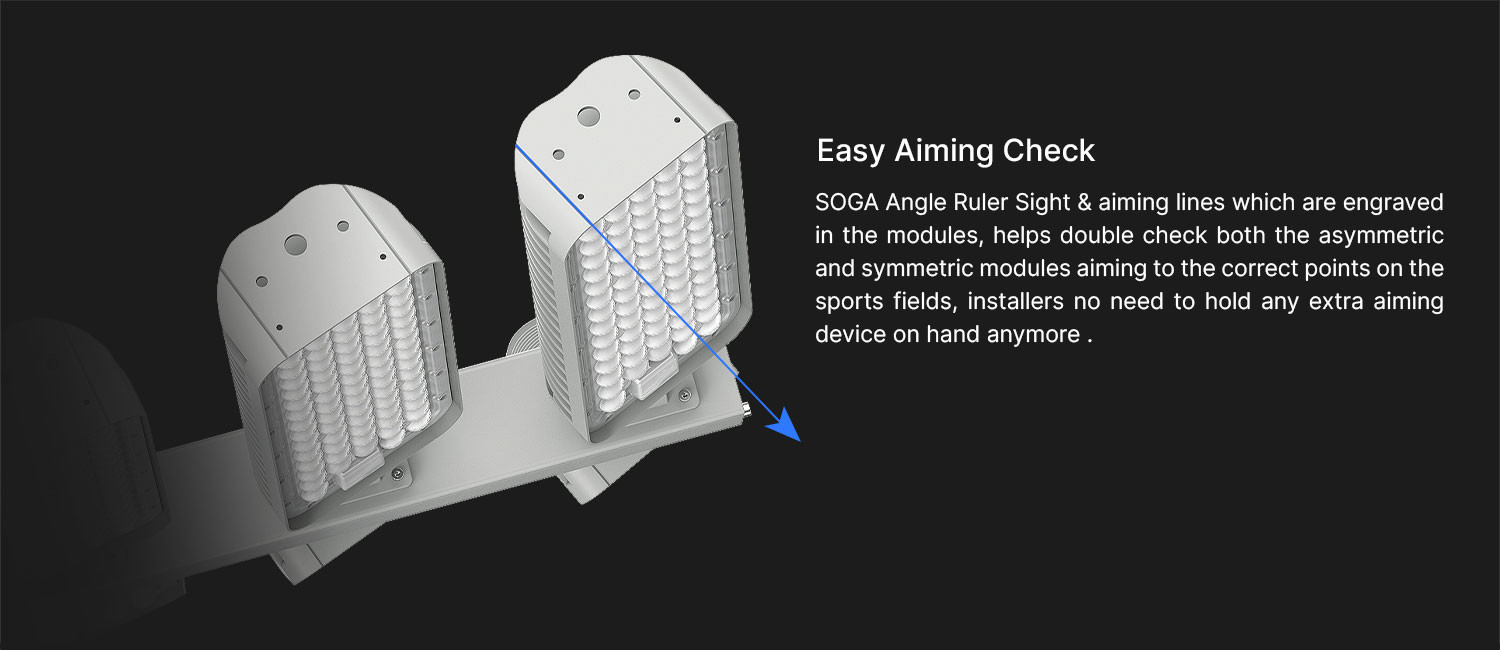

Easy Aiming Check
SOGA Angle Ruler Sight & aiming lines which are engraved in the modules, helps double check both the asymmetric and symmetric modules aiming to the correct points on the sports fields, installers no need to hold any extra aiming device on hand anymore .

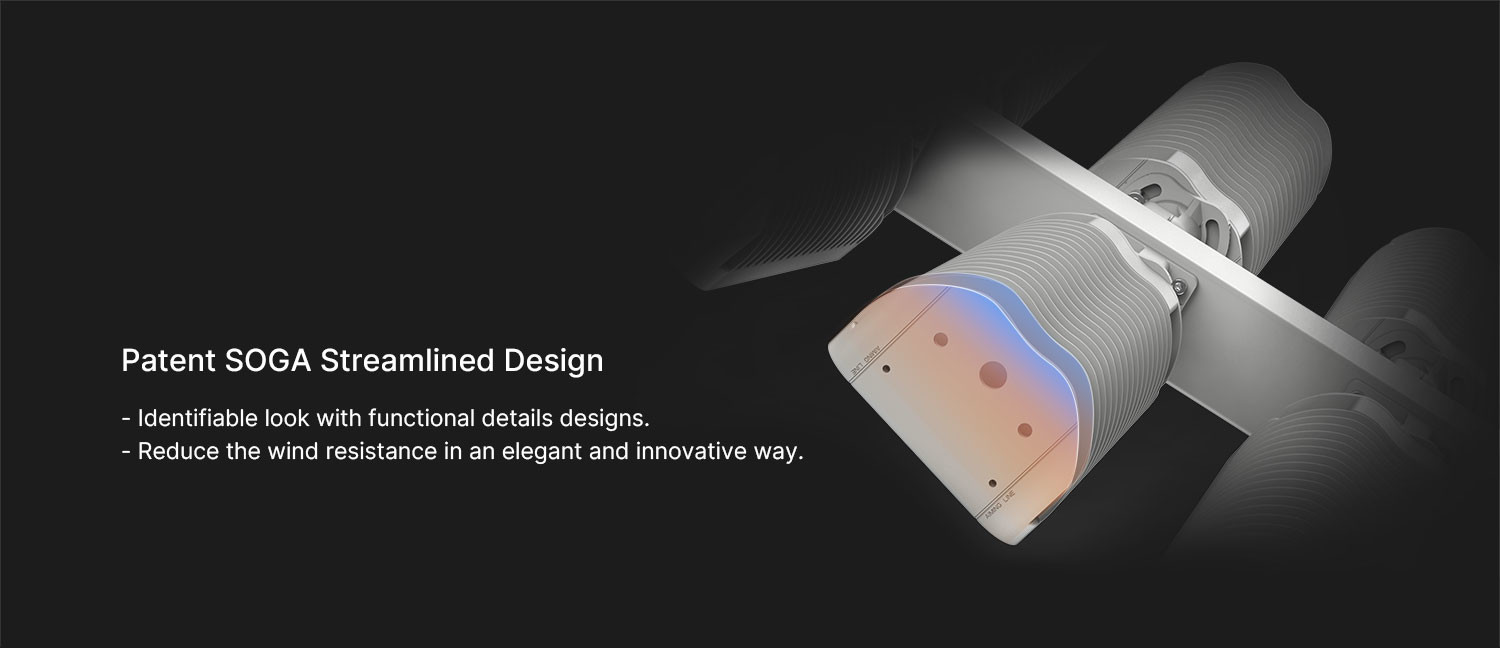

Patent SOGA Streamlined Design
- Identifiable look with functional details designs.
- Reduce the wind resistance in an elegant and innovative way.
Quick Connected Electrical Box
SOGA offering the full set of waterproof Integrated electrical box when you need fix the drivers on the bottom of the pole. All drivers and full control system will be wired well ahead in SOGA factory. Waterproof plug and play connectors will be left out of the box for your quick connection.
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
