IK08 900W Glare Free LED Flood Light 0-10V Dimming Horizontally Rotatable

Product Categories
Shenzhen SOGA Lighting Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

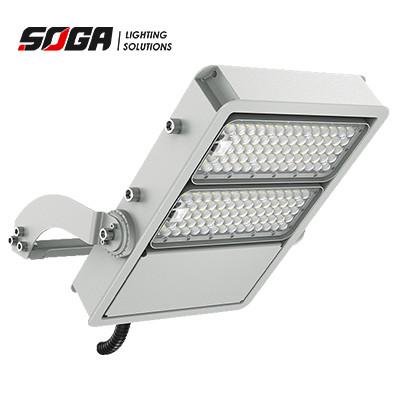

IK08 900W Glare Free LED Flood Light 0-10V Dimming Horizontally Rotatable

  • 1
  • 2

Brand Name : SOGA

Model Number : SG-JR-300W

Certification : ROHS CE IK09 IP66

Place of Origin : China

Payment Terms : L/C, T/T, Western Union

Delivery Time : 15

L70 Hour : ＞100.000h

Optional Accessories : SPD, Zigbee Gateway, Zigbee Controller, Zigbee Wall Switch

Windload Test : 17 class windload(56.1-61.2m/s, 240kg/square meter)

IK Rate : IK09

Bracket : Stainless Steel

Driver : INVENTRONICS, MEANWELL, SOSEN

Contact Now

0-10V Dimming SOGA Patent 900W Sports Lighting Glare Free LED Flood Light

Patented c series LED sports lights have an elegant appearance with die-cast modules, IK rating is IK08 Vertically and horizontally rotatable heat sink design makes every module flexibly targeting to specified point to get much better light uniformity on sports field. Upward light ratio=0 for light fixture with symmetrical beams and spill covers Upward light ratio=0 for light fixture with asymmetrical beams Optional long distance wireless control system and DMX control system

  • Patent SOGA Streamlined Design
  • High-quality Die-casting aluminium housing
  • Vertically and Horizontally Adjustable Modular Design

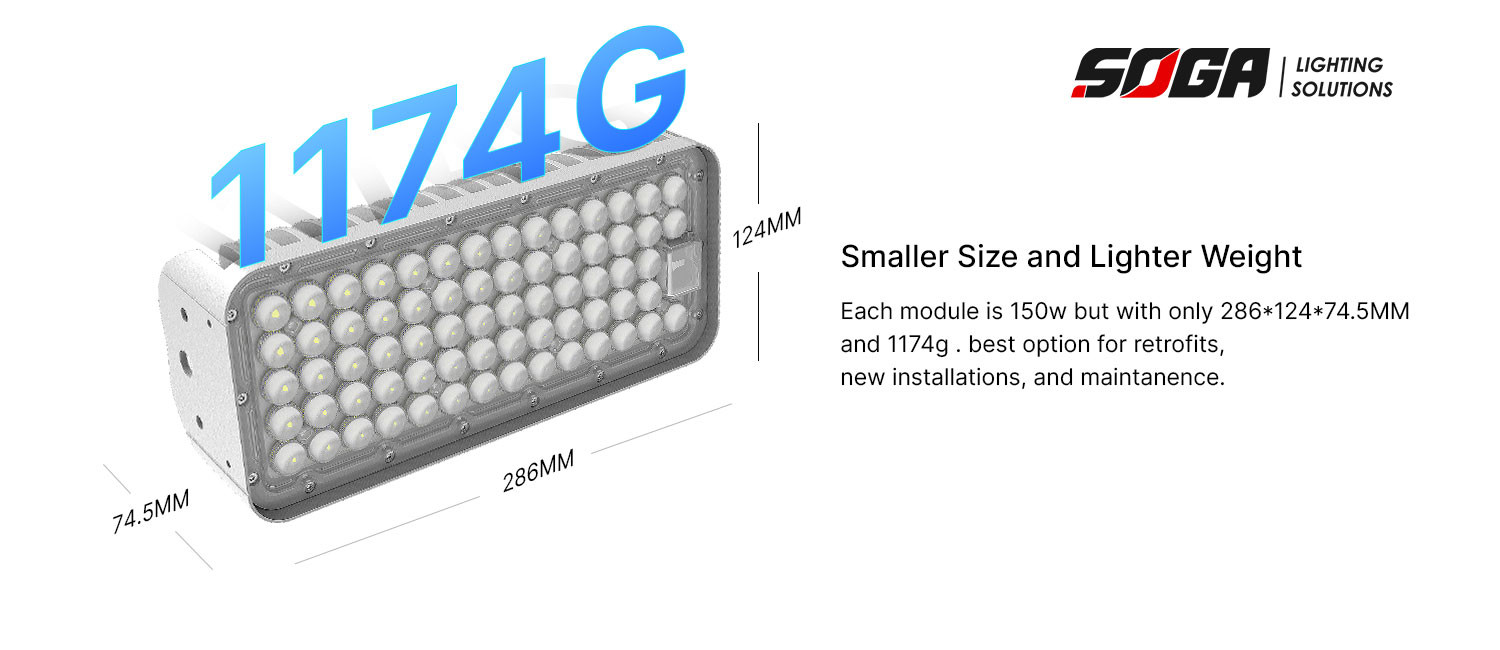

  • Smaller Size and Lighter Weight
  • Anti-Glare & Obtrusive Light Control
  • Easy Aiming Check One-size Screws for all adjustment
  • Tool-free driver box
  • Quick Connected Electrical Box
  • Wireless Smart Control
  • Wireless or DMX Entertainment System

INTRODUCTION

Input Voltage AC90-305V/AC108-528V
Housing Aluminum
Aluminum Lumileds 5050
Rotatable Modular Design Horizontally15°
CRI 70 80 90
Wattage/Module 150W
Operating Temp -40℃ To 55℃
Dimming Solutions 0-10V Dimming, DALI, DMX, clo, Zigbee
Power Factor Power Factor
CCT 3000K 4000K 5000K 5700K 6500K

MODEL SG-JR-150W SG-JR-300W SG-JR-450W SG-JR-600W SG-JR-750W SG-JR-900W SG-JR-1200W SG-JR-1500W

WATTAGE

Symmetrica

 150W 300W 450W 600W 750W 900W 1200W 1500W

MODEL QTY

 1 2 3 4 5 6 8 10

LUMEN EFFICIENCY

Symmetric

 170LM/W 170LM/W 170LM/W 170LM/W 170LM/W 170LM/W 170LM/W 170LM/W
LUMEN OUTPUT 25,500LM 51,000LM 76,500LM 102,000LM 127,500LM 153,000LM 204,000LM 255,000LM

IK08 900W Glare Free LED Flood Light 0-10V Dimming Horizontally Rotatable

IK08 900W Glare Free LED Flood Light 0-10V Dimming Horizontally Rotatable

service
with the "User first, customer first" Company motto, quality assurance , economic price , fast Delivery time is our only faith. we will try our best to make every customer to enjoy the the most flexible,efficient services.We sincere hope that we can seek the common development and cooperation with the customer together to achieve a win-win situation.

IK08 900W Glare Free LED Flood Light 0-10V Dimming Horizontally Rotatable


Product Tags:

900W Glare Free LED Flood Light



Glare Free LED Flood Light Dimming



900W LED Flood Light


Quality IK08 900W Glare Free LED Flood Light 0-10V Dimming Horizontally Rotatable wholesale

IK08 900W Glare Free LED Flood Light 0-10V Dimming Horizontally Rotatable Images
