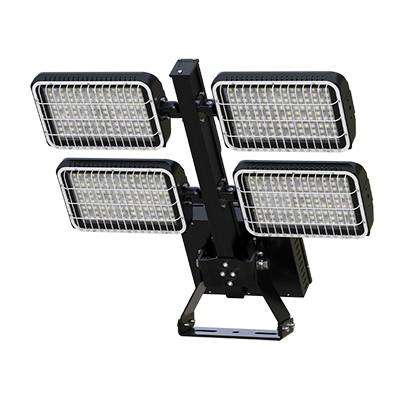

Sports Light With Dark Housing 1800W High Efficiency 175lm/W Rotatable Modular 17 Class Wind Load IK08 CRI90
SPECIFICATIONS
SOGA patent design under the inspiration of Barrett rifle. Which is similar as the rifle, Precise targeting is the most outstanding feature of SOGA Barrett Series Sports lights, and also with other competitive features as below:
Precise target lighting with the all-direction rotatable modular design
Glare Control with light spill cover
Class 17 wind load resistance
Free Dialux Simulation
Broadcast standard TLCI＞90
No exposed electric wire
Wireless Control
Detachable driver box
Quick connection plug
| Dimming Solutions | 0-10v Dimming,dali,clo,Zigbee Technology |
| Power Factor | ＞0.95 |
| CCT | 3000k 4000k 5000k 5700k 6500k |
| Warranty | 5 Yrs Warranty |
| Wireless Contro | Available |
| IP Rate | IK08 |
| Driver | Meanwell, Sosen, Inventronics |
| L70 Hour | ＞60.000h |
| MODEL | SG-BA-Y1000W | SG-BA-Y1200W | SG-BA-Y1500W | SG-BA-Y1800W |
| WATTAGE | 1000W | 1200W | 1500W | 1800W |
| MODEL QTY | 4 | 4/5 | 5/6 | 6 |
| WATTAGE/MODULE | 250W | 250 OR 300W | 250 OR 300W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
Ultra-thick Stainless Steel Bracket
7.5mm stainless steel installation bracket, Rugged
Weather-Tight Design
Stainless Steel Conduit
Protect the cable from any potential damage ,
like bird, rugged weather etc.

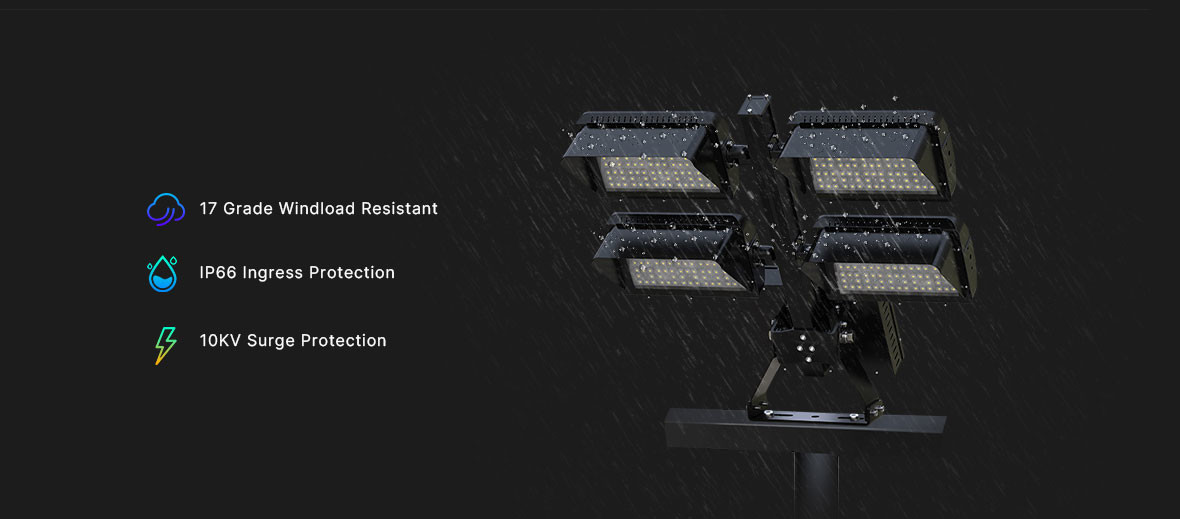

17 Grade Windload Resistant
IP66 Ingress Protection
10KV Surge Protection
Scope of application
the product is widely used in tennis court Seaport Cricket courtfootball fieldConstruction Site Outdoor parking lot golf course.it can meet the diverse needs of customers
