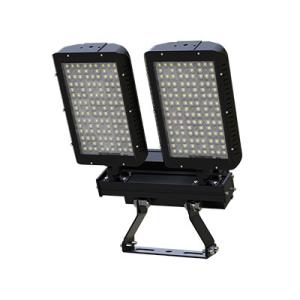

Outdoor Light With Dark Housing 600W LED5050 Rotatable Modular 17 Class Wind Load Aluminum & Stainless Steel For Practic
SPECIFICATIONS
As an important member of Barrett Family, E series are more suitable for those small fields or outdoor area, for example: Tennis Court, Padel courts, Horse riding field. Same as other Barrett members, E series are also with below shinning features:
From 250W to 900W
Precise target lighting with the all-direction rotatable modular design
Glare Control with light spill cover
Class 17 wind load resistance
Free Dialux Simulation
Broadcast standard TLCI＞90
No exposed electric wire
Wireless Control
Detachable driver box
Quick connection plug
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Led Brand | Lumileds 5050 |
| Rotatable Modular Design | Vertically 360°+horizontally180° |
| CRI | 70 80 90 |
| Wattage/module | 250 Or 300w |
| Operating Temp | -40℃ To 55℃ |
| Dimming Solutions | 0-10v Dimming,dali,clo,Zigbee Technology |
| Power Factor | ＞0.95 |
| Driver Box | Detachable SOGA Electrical box |
| MODEL | SG-HK480W | SG-HK720W | SG-HK960W | SG-HK1200W | SG-HK1440W |
| MODEL QTY | 4 | 6 | 8 | 10 | 12 |
| POWER | 400/480W | 600/720W | 800/960W | 1000/1200W | 1200/1440W |
| LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W |
| LUMEN OUTPUT | 60000-72000LM | 90000-108000LM | 120000-144000LM | 150000-180000LM | 180000-216000LM |

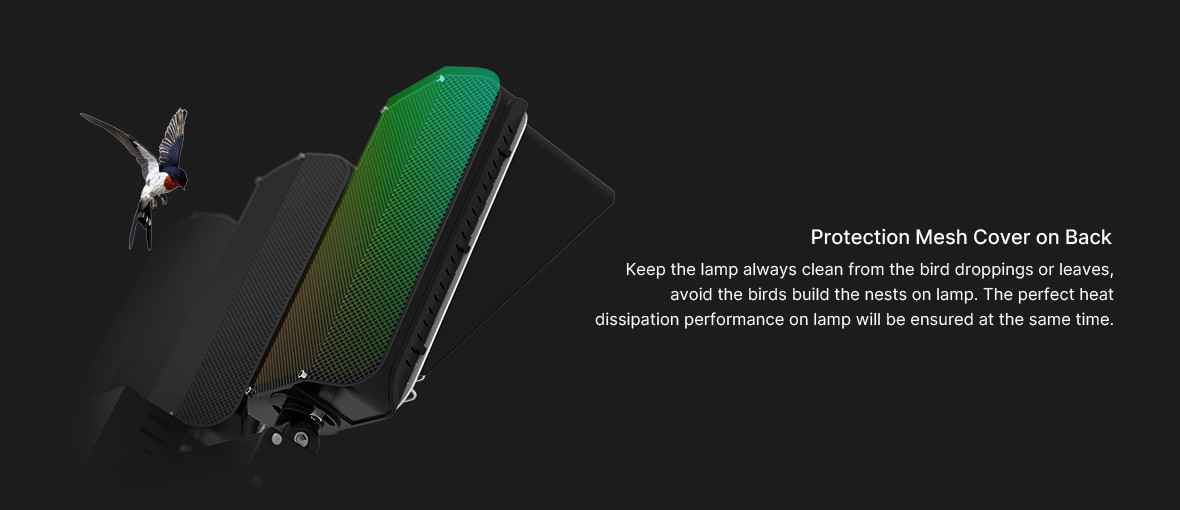

Protection Mesh Cover on Back
Keep the lamp always clean from the bird droppings or leaves,
avoid the birds build the nests on lamp. The perfect heat
dissipation performance on lamp will be ensured at the same time.

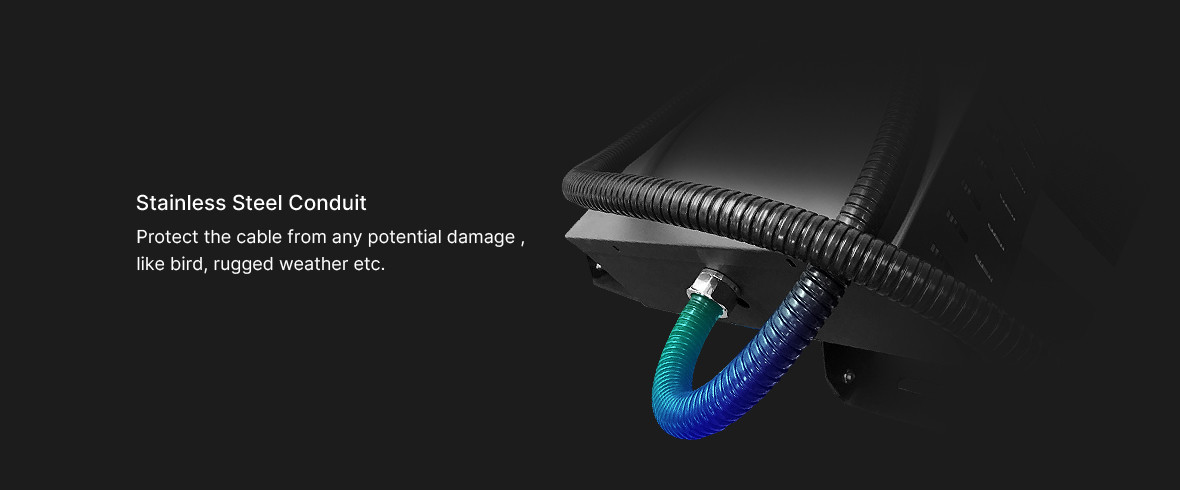

Stainless Steel Conduit
Protect the cable from any potential damage ,
like bird, rugged weather etc.

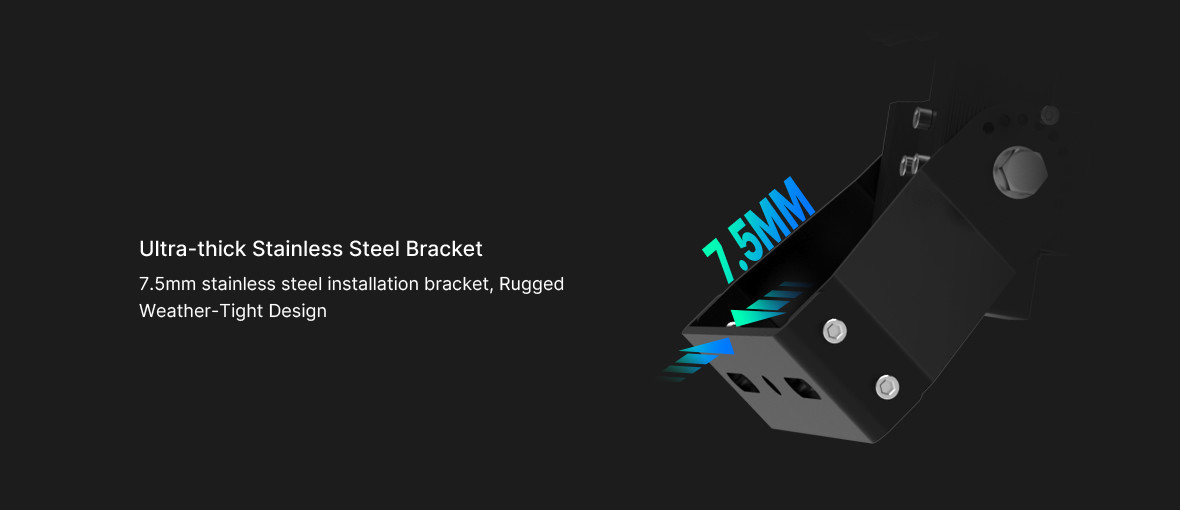

Ultra-thick Stainless Steel Bracket
7.5mm stainless steel installation bracket, Rugged
Weather-Tight Design
FAQ:
Q1. What about the VS lead time ?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Does VS have any MOQ limit for LED Lights order ?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q4. How does VS proceed an order for LED Fin High Bay Lights ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
