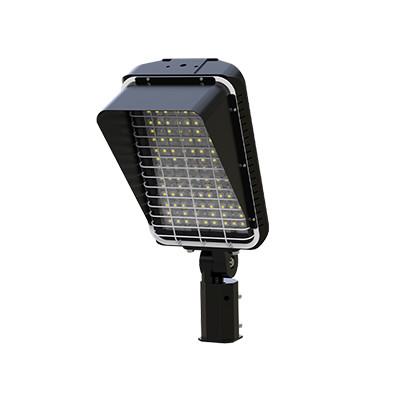

Outdoor light with Dark housing 300W LED5050 Rotatable modular 17 Class Wind Load Aluminum & Stainless Steel for Football
SPECIFICATIONS
As an important member of Barrett Family, E series are more suitable for those small fields or outdoor area, for example: Tennis Courts, Padel courts, Horse riding field. Same as other Barrett members, E series are also with below shinning features:
From 250W to 900W
Precise target lighting with the all-direction rotatable modular design
Glare Control with light spill cover
Class 17 wind load resistance
Free Dialux Simulation
Broadcast standard TLCI＞90
No exposed electric wire
Wireless Control
Detachable driver box
Quick connection plug
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Led Brand | Lumileds 5050 |
| Rotatable Modular Design | Vertically 360°+horizontally180° |
| CRI | 70 80 90 |
| Wattage/module | 250 Or 300w |
| Operating Temp | -40℃ To 55℃ |
| Dimming Solutions | 0-10v Dimming,dali,clo,Zigbee Technology |
| Power Factor | ＞0.95 |
| Driver Box | Detachable SOGA Electrical box |
| MODEL | SG-HK480W | SG-HK720W | SG-HK960W | SG-HK1200W | SG-HK1440W |
| MODEL QTY | 4 | 6 | 8 | 10 | 12 |
| POWER | 400/480W | 600/720W | 800/960W | 1000/1200W | 1200/1440W |
| LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W |
| LUMEN OUTPUT | 60000-72000LM | 90000-108000LM | 120000-144000LM | 150000-180000LM | 180000-216000LM |

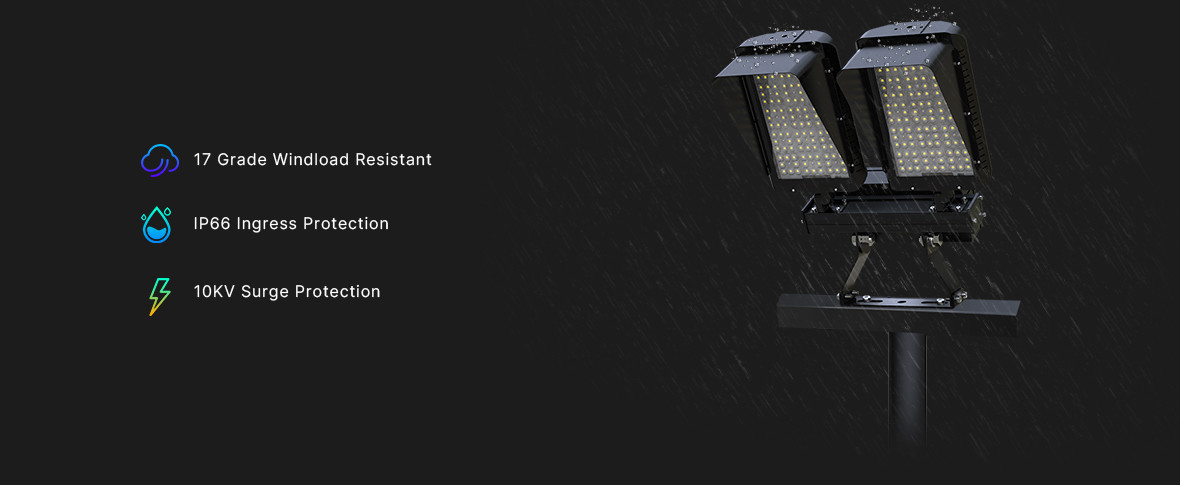

17 Grade Windload Resistant
IP66 Ingress Protection
10KV Surge Protection

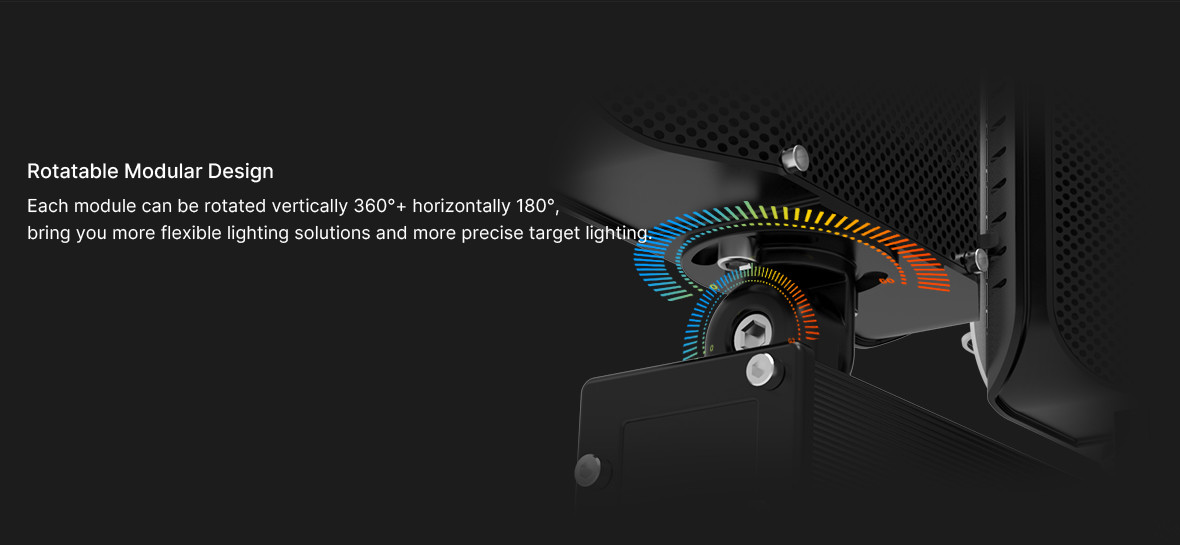

Rotatable Modular Design
Each module can be rotated vertically 360°+ horizontally 180°,
bring you more flexible lighting solutions and more precise target lighting.

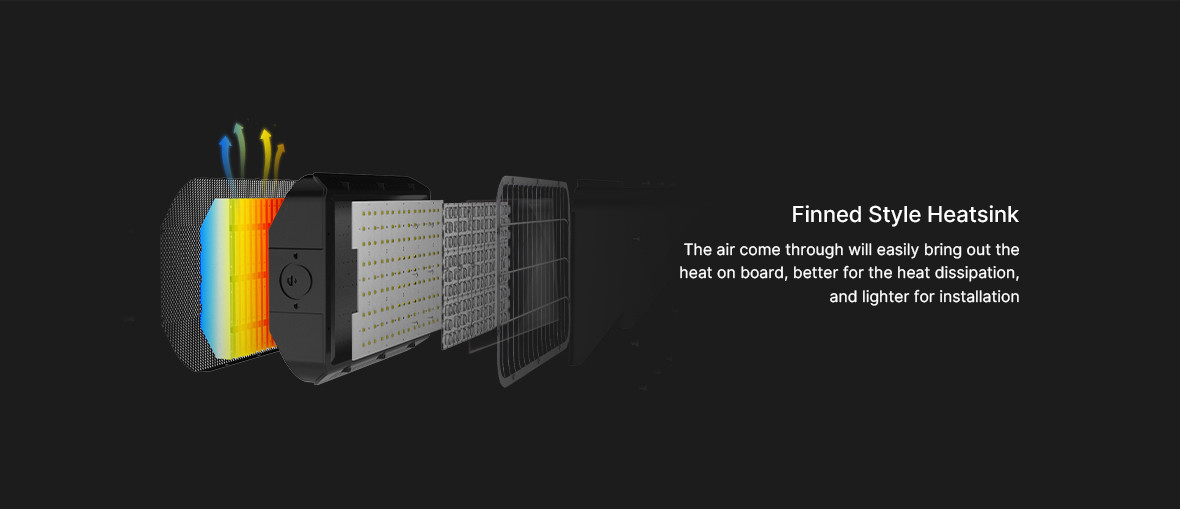

Finned Style heatsink
The air come through will Easily bring out the heat on board,better for the heat dissipation,and lighter for installation
Scope of application
the product is widely used in tennis court Seaport Cricket courtfootball fieldConstruction Site Outdoor parking lot golf course.it can meet the diverse needs of customers
